Water Bowser Empty Water Bowser

Post  bazzer on Sat 06 Aug 2016, 4:43 pm

July was a bit light as regards work on kits, so I thought I would have a go at making a Water Bowser for my 4" agri.
These are photos of finished article.
Water Bowser Img_0410
Water Bowser Img_0412
Water Bowser Img_0414
Water Bowser Img_0413
Water Bowser Img_0411
bazzer
bazzer

Number of posts : 204
Age : 59
Location : Poole
Registration date : 2015-05-01

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  LiveSteam on Sun 07 Aug 2016, 9:46 pm

Thats rather neat, what did you base the tank on or is it scratch built ??

LiveSteam

Number of posts : 571
Location : Hampshire
Registration date : 2013-09-08

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  bazzer on Sun 07 Aug 2016, 10:03 pm

The tank is an old gas cylinder.
bazzer
bazzer

Number of posts : 204
Age : 59
Location : Poole
Registration date : 2015-05-01

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  LiveSteam on Sun 07 Aug 2016, 10:26 pm

I did have my suspicions Wink

Until I saw yours I hadnt thought of useing one, think I'll have a rumage in the garden over the coming weeks.

LiveSteam

Number of posts : 571
Location : Hampshire
Registration date : 2013-09-08

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  bazzer on Sun 07 Aug 2016, 10:34 pm

Capacity is around 44 litres, much the same as the STW one.
I'm in two minds regarding the wheels at the moment though, on the lookout for slightly smaller ones.
bazzer
bazzer

Number of posts : 204
Age : 59
Location : Poole
Registration date : 2015-05-01

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  LiveSteam on Tue 09 Aug 2016, 6:25 pm

Yes I tend to agree the wheels could do with being a tadge smaller.

LiveSteam

Number of posts : 571
Location : Hampshire
Registration date : 2013-09-08

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  Ian on Wed 10 Aug 2016, 9:41 am

bazzer wrote:Capacity is around 44 litres, much the same as the STW one.
I'm in two minds regarding the wheels at the moment though, on the lookout for slightly smaller ones.

Hide your wheel barrows and mobility scooters guys and gals

Ian

Number of posts : 113
Age : 63
Location : Daventry
Registration date : 2008-06-30

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  bazzer on Wed 10 Aug 2016, 5:37 pm

Darn it, my cunning plan has been foiled.
bazzer
bazzer

Number of posts : 204
Age : 59
Location : Poole
Registration date : 2015-05-01

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  bazzer on Mon 02 Jan 2017, 12:14 pm

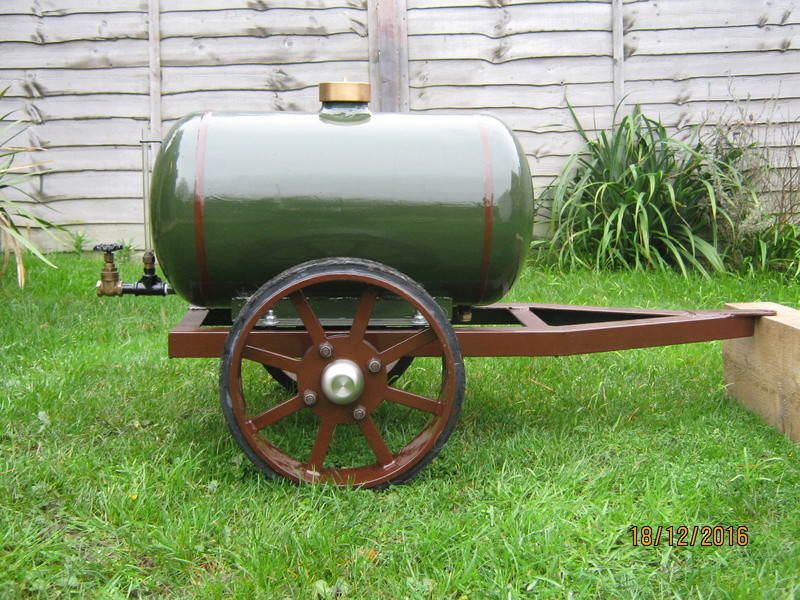

I couldn't find any wheels off the shelf that were suitable, so had a go at making some myself.

Water Bowser Img_0636
Water Bowser Img_0638
Water Bowser Img_0637
bazzer
bazzer

Number of posts : 204
Age : 59
Location : Poole
Registration date : 2015-05-01

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  Robfishman on Sat 07 Jan 2017, 5:12 pm

They look great, and much better than the bigger wheels. I've the STW one myself, but think your tank looks a bit better with more rounded ends. Does the tank have baffled in it, I've never looked inside one?
Robfishman
Robfishman

Number of posts : 1059
Age : 45
Location : Chandlers Ford Hants 4" showmans & 4" Roller
Registration date : 2010-11-26

http://www.robertfish.net

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  bazzer on Sat 07 Jan 2017, 7:49 pm

Hi Rob,
Yes I'm quite pleased with the wheels.
The tank has no baffles, not sure how it will behave when half full, only time will tell !!!!!

Barry
bazzer
bazzer

Number of posts : 204
Age : 59
Location : Poole
Registration date : 2015-05-01

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  LiveSteam on Mon 09 Jan 2017, 7:18 pm

Love the wheels, they look the mutts, how did you go about doing them ??

If you dont mind me asking ?

LiveSteam

Number of posts : 571
Location : Hampshire
Registration date : 2013-09-08

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  bazzer on Mon 09 Jan 2017, 9:48 pm

I know a fabricator who rolled the rims for me, I drew a sketch of the spokes and a local water jet company cut them for me, I then welded the spokes to the rims. Found some thick scraper rubber, cut and glued the ends then isoflexed to the rims. Hubs are adapted from some indespension units. Hub caps are stainless steel cups from Tesco thermos flask.
bazzer
bazzer

Number of posts : 204
Age : 59
Location : Poole
Registration date : 2015-05-01

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  LiveSteam on Tue 10 Jan 2017, 7:43 pm

bazzer wrote:I know a fabricator who rolled the rims for me, I drew a sketch of the spokes and a local water jet company cut them for me, I then welded the spokes to the rims. Found some thick scraper rubber, cut and glued the ends then isoflexed to the rims. Hubs are adapted from some indespension units. Hub caps are stainless steel cups from Tesco thermos flask.

Simple when you know Cool

Cheers

LiveSteam

Number of posts : 571
Location : Hampshire
Registration date : 2013-09-08

Back to top Go down

Water Bowser Empty Re: Water Bowser

Post  Robfishman on Tue 10 Jan 2017, 10:36 pm

bazzer wrote:Hi Rob,
Yes I'm quite pleased with the wheels.
The tank has no baffles, not sure how it will behave when half full, only time will tell !!!!!

Barry

Indeed, but if you do get a problem you could drop some baffle balls inside which would help solve it if you can find some small enough to drop through the hole.
Robfishman
Robfishman

Number of posts : 1059
Age : 45
Location : Chandlers Ford Hants 4" showmans & 4" Roller
Registration date : 2010-11-26

http://www.robertfish.net
