Showmans / Road loco rolling chassis Empty Showmans / Road loco rolling chassis

Post  craig@STW Mon 06 Sep 2010, 8:10 am

with the Dorset show out the way its now safe to post the photos of the rolling chassis on the forum Cool

we are using a dummy hollow boiler and a rather basic rear Axel but everything is set to the correct dimensions.

Showmans / Road loco rolling chassis Jkl003-1

Showmans / Road loco rolling chassis Ghi005-1

Showmans / Road loco rolling chassis Jkl009-1

Showmans / Road loco rolling chassis Jkl008-1

Showmans / Road loco rolling chassis Jkl012-1

Showmans / Road loco rolling chassis Jkl033-1

Showmans / Road loco rolling chassis Jkl026-1

Showmans / Road loco rolling chassis Jkl025-1

Showmans / Road loco rolling chassis Jkl023-1

Showmans / Road loco rolling chassis Jkl020-1

Showmans / Road loco rolling chassis Jkl015-1

Showmans / Road loco rolling chassis Jkl013-1

craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Dorset Show

Post  Steve Traill Mon 06 Sep 2010, 11:05 pm

Showmans / Road loco rolling chassis Dscn1410

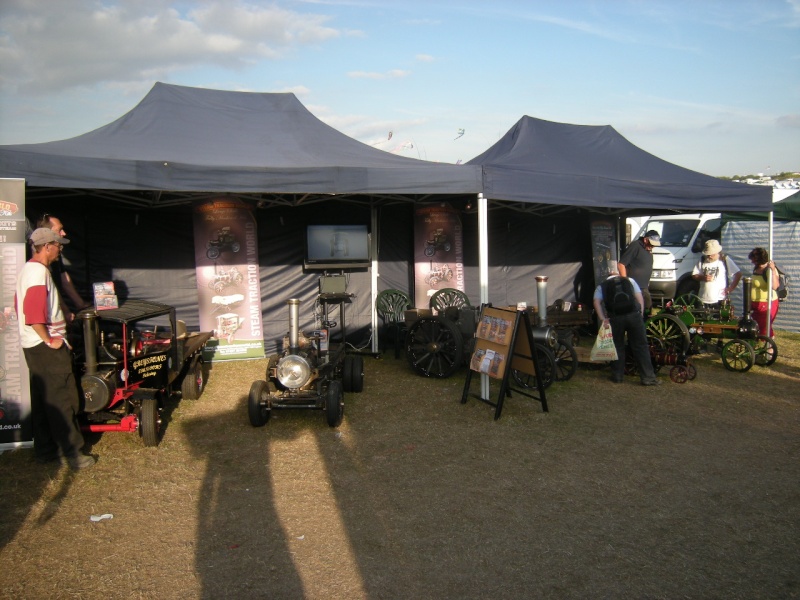

Here is a picture of the STW stand when at about 6.30pm a gap appeared (for a millisecond!) in the crowd for me to take this picture. The stand was busy all day every day. The Showmans/Road Loco mock up was very impressive & received nothing but praise from everyone. Having looked at it for 5 days and from every angle I don't think there is any way of improving it, everything is spot on. Anyone interested in one should decide soon as with the ones we sold at Dorset there's only a few left of this extended run and when 'they're gone they're gone' as they say. Also the 'J' type Foden in SWB Artic form is going to be a 'hot' engine on the rally field as there is nothing like it out there & will be a real head turner.
ps Can anyone spot the deliberate mistake on the stand?!!
Steve Traill
Steve Traill

Number of posts : 800
Age : 67
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  sonick45 Tue 07 Sep 2010, 6:04 am

The stand looked fine to me although I'd had quite a bit to drink by the time i made it over to the stand.. drunken
Is the left hand tent the wrong way around?

I was impressed to see how busy the stand was from first thing all the way through the afternoon.

i even caught the tail end of a conversation over by the showmans line later on in the evening talking about the DCC and how impressive it will look when finished so i'm happy i've made the right decision to build an STW model.

Here is another view of the stand.
img]Showmans / Road loco rolling chassis CIMG1579[/img]

Just one word of advice if you are thinking of going to Dorset next year.. Cover your car?
The dust is unbelievable and due to all the heavy haulage movement in the play pen it is kicked up is great clouds.

I had to literally scrape my way down to glass on the windscreen and there wasn't one part of the car that didn't have a chalky white film on it.. Other than that seeing the rolling chassis in the flesh and surmising over the possibility of a double seat arrangement on the back well and truly made up for it.

Many Thanks for the IPA.. Smile


Nick

sonick45

Number of posts : 511
Location : Barton-Le-Clay (Beds)
Registration date : 2009-01-26

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Tue 07 Sep 2010, 8:12 am

ps Can anyone spot the deliberate mistake on the stand?!!

no dean on the stand ?

dean on the stand ?

taking a photo with your shadow in it ? Razz

leaflet stand in front of rolling chassis ?

too far away from beer tent ?

too close to beer tent ?

101 reasons why the models are not "exactly" like the originals in ways that only true enthusiasts (read geeks) would know

Razz Razz Razz Razz Razz

lack of any LARGE Steam Traction World signs ?




craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Signs

Post  Steve Traill Tue 07 Sep 2010, 1:16 pm

Who didn't pack the signs then!!! no xmas bonus for them then. Next year there might be flags up so the stand is easy to find.
Steve Traill
Steve Traill

Number of posts : 800
Age : 67
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Fri 10 Sep 2010, 8:13 am

the prototype laser cuts for the dynamo mounting arrived this week and have been rolled and fitted to the chassis...

Showmans / Road loco rolling chassis Abc789006

Showmans / Road loco rolling chassis Abc789007-1

all that work on the smoke-box and now you can hardly see it Rolling Eyes Rolling Eyes Very Happy
craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Hiding

Post  lynnr Fri 10 Sep 2010, 9:14 am

Hi Craig

Looking good on the extension for the dynamo. I take it that the smokebox door does not get impeded by the extension?
lynnr
lynnr

Number of posts : 3242
Age : 55
Location : Highland, 4inch showman
Registration date : 2010-08-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Fri 10 Sep 2010, 11:49 am

the door comes into contact with the mounting just before it reaches 90 degrees of "open-ness". still plenty of room to get in there but you cant open the door "fully and out of the way" any more.

I'll take a photo before the end of the day Cool
craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Fri 10 Sep 2010, 12:00 pm

may actually give a prize out to anyone who can understand that last comment. i cant figure it out and i wrote it Rolling Eyes
craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty cryptic

Post  lynnr Fri 10 Sep 2010, 12:13 pm

craig@STW wrote:may actually give a prize out to anyone who can understand that last comment. i cant figure it out and i wrote it Rolling Eyes


Yes it makes perfect sence
lynnr
lynnr

Number of posts : 3242
Age : 55
Location : Highland, 4inch showman
Registration date : 2010-08-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  Tony King Fri 10 Sep 2010, 1:43 pm

Hi Craig,
You may be able to open the door, but I don't think it'll will be possible to remove the door hinge pin unless it's modified or put in from the bottom & held in place somehow. ( with split pin at the top, perhaps?)
Just a thought for those who will want to remove the door without taking the whole engine to pieces after it's built!!
Tony King

Tony King

Number of posts : 856
Age : 68
Location : scotland
Registration date : 2008-10-31

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Fri 10 Sep 2010, 3:00 pm

here's the photos of the door open...

Showmans / Road loco rolling chassis Def123001-1

Showmans / Road loco rolling chassis Def123003-1

and no, you can't remove the hinge pin.
craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  forge Fri 10 Sep 2010, 6:57 pm

would an extra hole in the dynamo mounting plate be useful for removing the door hinge pin?

sorry still have not decided to build one of these yet. still have a few things to do to my 2" first.
Would really like a 6" next! will have to start saving up!
forge
forge

Number of posts : 107
Location : Norfolk (2" Burrell)
Registration date : 2008-07-01

Back to top Go down

Showmans / Road loco rolling chassis Empty Pins

Post  lynnr Fri 10 Sep 2010, 8:09 pm

Hummm. Think I may just put the hinge pin up side down and secure with a R clip.
lynnr
lynnr

Number of posts : 3242
Age : 55
Location : Highland, 4inch showman
Registration date : 2010-08-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Sat 11 Sep 2010, 8:08 am

well there's a lot to go on top of the mounting so im not sure there would be clearance to pass the pin up into a hole, but good idea, worth looking at Cool

another alternative would be to have the top hinge block threaded and end of the pin threaded so you can "screw" the pin in place, but then we are moving away from type Neutral
craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  greystones Sat 11 Sep 2010, 10:06 am

Hi
Looks to me as though you can get a tube brush in OK so why would you need to remove the door apart from repainting the name rings when the paint tarnishes.

Mike
greystones
greystones

Number of posts : 65
Location : Pickering North Yorkshire
Registration date : 2008-06-16

http://greystonesholidays.co.uk

Back to top Go down

Showmans / Road loco rolling chassis Empty Hinge pin

Post  Tony King Sat 11 Sep 2010, 11:28 am

On my engine the hinge is polished metal so will need to be removable to keep that proper showmans "wow factor". I have actually made a small collar & drilled through hinge pin & collar & fitted a taper pin. There is a fabulous showmans engine "Dolphin" near here which I'm sort of copying. The same man also owns the "president" which I took the pictures of, which you see from STW.
Tony king

Tony King

Number of posts : 856
Age : 68
Location : scotland
Registration date : 2008-10-31

Back to top Go down

Showmans / Road loco rolling chassis Empty Smokebox door

Post  Steve Traill Sat 11 Sep 2010, 9:40 pm

I noticed up at Dorset this year at least one Burrell Showmans had the smokebox door hinged from the bottom so it drops down. Whether this was done by Burrells or later on I couldn't say but it would alliviate the hinge pin problem. The hole in the dynamo bracket might not work anyway depending on where the dynamo sits. Other options are two small hinge pins, stick it in upside down with an R clip, unbolt the door from the hinge, unbolt the hinge from the smokebox or crack open another tinny and leave it as it is! pirat
Steve Traill
Steve Traill

Number of posts : 800
Age : 67
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

Back to top Go down

Showmans / Road loco rolling chassis Empty Smokebox door pin

Post  lynnr Mon 13 Sep 2010, 12:46 pm

Hi

Just been looking through the pictures of ex-mayor Here and I think the smokebox door pin is in the upside down position!

lynnr
lynnr

Number of posts : 3242
Age : 55
Location : Highland, 4inch showman
Registration date : 2010-08-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Thu 16 Sep 2010, 8:07 am

yes Lynn, looks like your right Cool

OK, the next section of the prototype dynamo mount is now bent and fitted, ready for the show at the weekend. here's the photos...

Showmans / Road loco rolling chassis Def789002-1

Showmans / Road loco rolling chassis Def789001-1

Showmans / Road loco rolling chassis Def789004-1
craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Show

Post  lynnr Thu 16 Sep 2010, 9:09 am

Hi Craig

What show is it this weekend?

Pinstriping paint and brushes arrived yesterday. Practice and trial run hopefully tonight. Axil first as it is the easiest I think.
lynnr
lynnr

Number of posts : 3242
Age : 55
Location : Highland, 4inch showman
Registration date : 2010-08-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  craig@STW Thu 16 Sep 2010, 12:09 pm

lynnr wrote:Hi Craig

What show is it this weekend?


this one
craig@STW
craig@STW

Number of posts : 1410
Location : location Location
Registration date : 2010-05-06

Back to top Go down

Showmans / Road loco rolling chassis Empty Re: Showmans / Road loco rolling chassis

Post  Sponsored content


Sponsored content


Back to top Go down
